Visitor Magement Full Auto Tripod Turnstile Gate
Basic Info
Model No.: RS 318
Product Description
Visitor Magement Full Auto Tripod Turnstile Gate
The tripod turnstile RS 318 is a stylish half-height sensor barrier solutions designed for public and commercial buildings and airports. The tripod turnstile RS 318 features durable, high-quality materials, full access and destination control integration, stylish lighting options, and visual guidance alternatives. To complement our turnstiles, we also offer glass and stainless steel swing gates as well as easy-to-install guidance barriers.
Functions and Features:
1. Stainless steel housing, novel and beautiful design, durable and stable mechanism.
2. Waterproof, sunscreen, anti-temperature, anti-cold.Suitable to used outdoor.
3. Led Indicator Light : Red and green light prompt the passing information.
4. with a variety of operating modes you can choose, you can set a one-way or two-way control
5. Can integrated with RFID , magnetic card, bar code card, and other control equipment.
6. Fire safety function: When out of power , arm will automatically drop down , keep channel open
7. Scour protection function : The arm will be locked before received the open signal.
8. Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc.
9. Automatic reset function : Passenger did not pass within the stipulated time , the system will automatically cancel the access permissions of the user . (Default 5 seconds).
Technical Specifications:
| No. | Item | Specification |
| 1 | Model | RS 318 |
| 2 | Type | Auto |

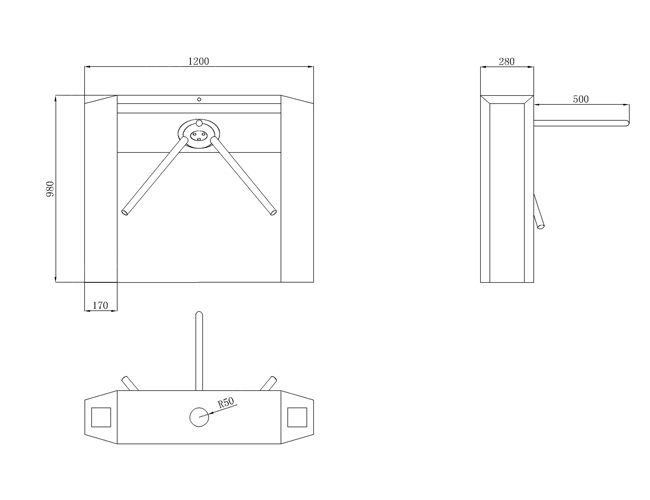

| 3 | Dimension: | 1200*280*990mm |
| 4 | Power | AC220C±10V,50HZ |
| 5 | Operating Temperature | -25°C-75°C |
| 6 | Relative Humidity | <95%, No Sensation |
| 7 | Communication Distance | ≤1200m |
| 8 | Passing Speed | ≤40 Persons/min |
| 9 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| 10 | Communication Connection | RS485 Communication |
| 11 | Material | SUS304 or Carbon Steel Powder Coating |
| 12 | Protection class | IP54 |
| 13 | Color | SSB(US32D)- Stainless Steel Brushed / Powder Coating/Customized Color |
| 14 | Application | Subway Station, Hoverport, Tourism SPORTS, Exhibition, Swimming Hall, Residence Area, Enterprise`s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on |
| 15 | Optional | 1.Counter and counter display |
| 2.Access controller or card reader | ||
| 3. Key by-pass |
Contact us if you need more details on Waist Height Turnstiles. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Waist Height Tripod Turnstile、Tripod Turnstiles Australia. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Gate > Turnstile Gate
